Product Description

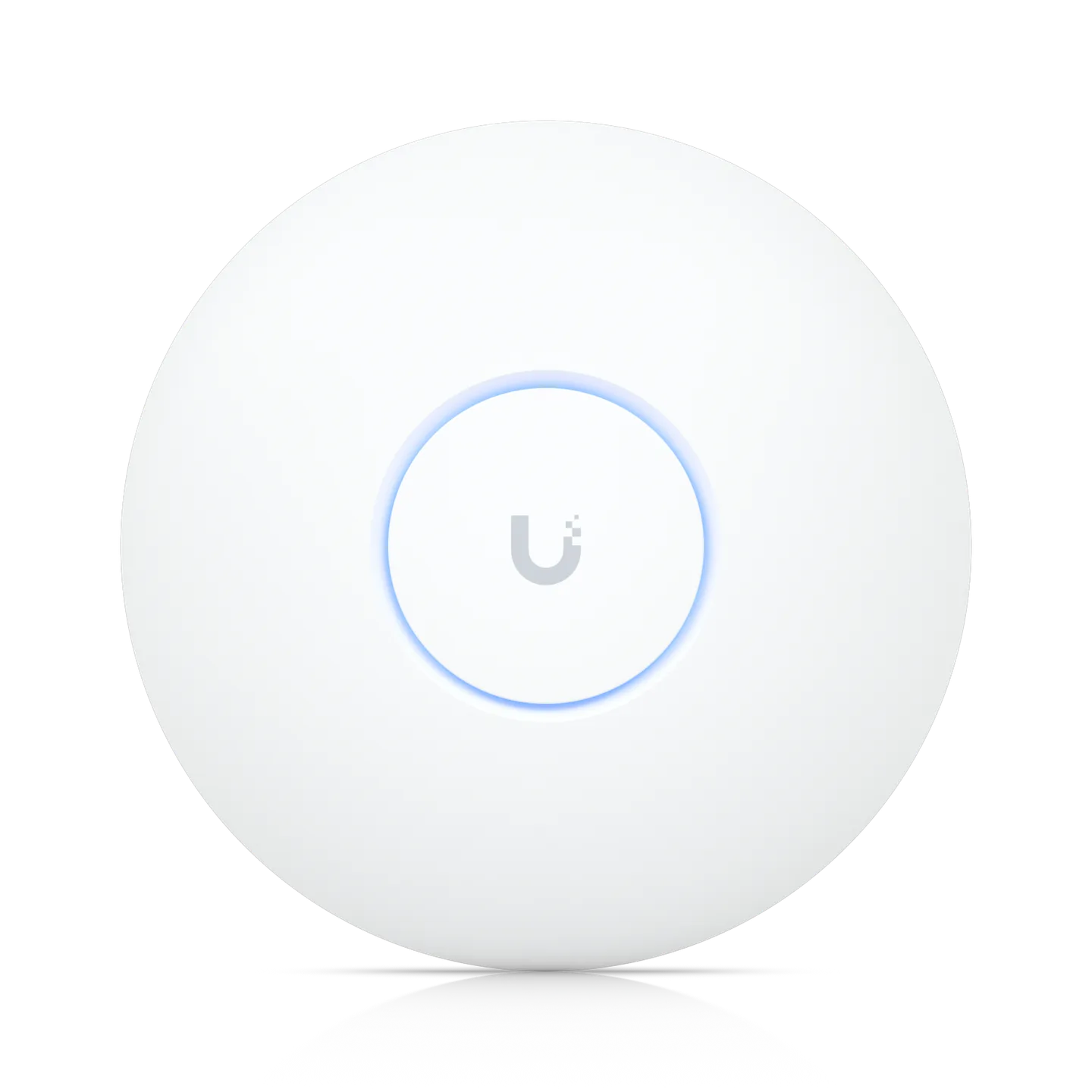

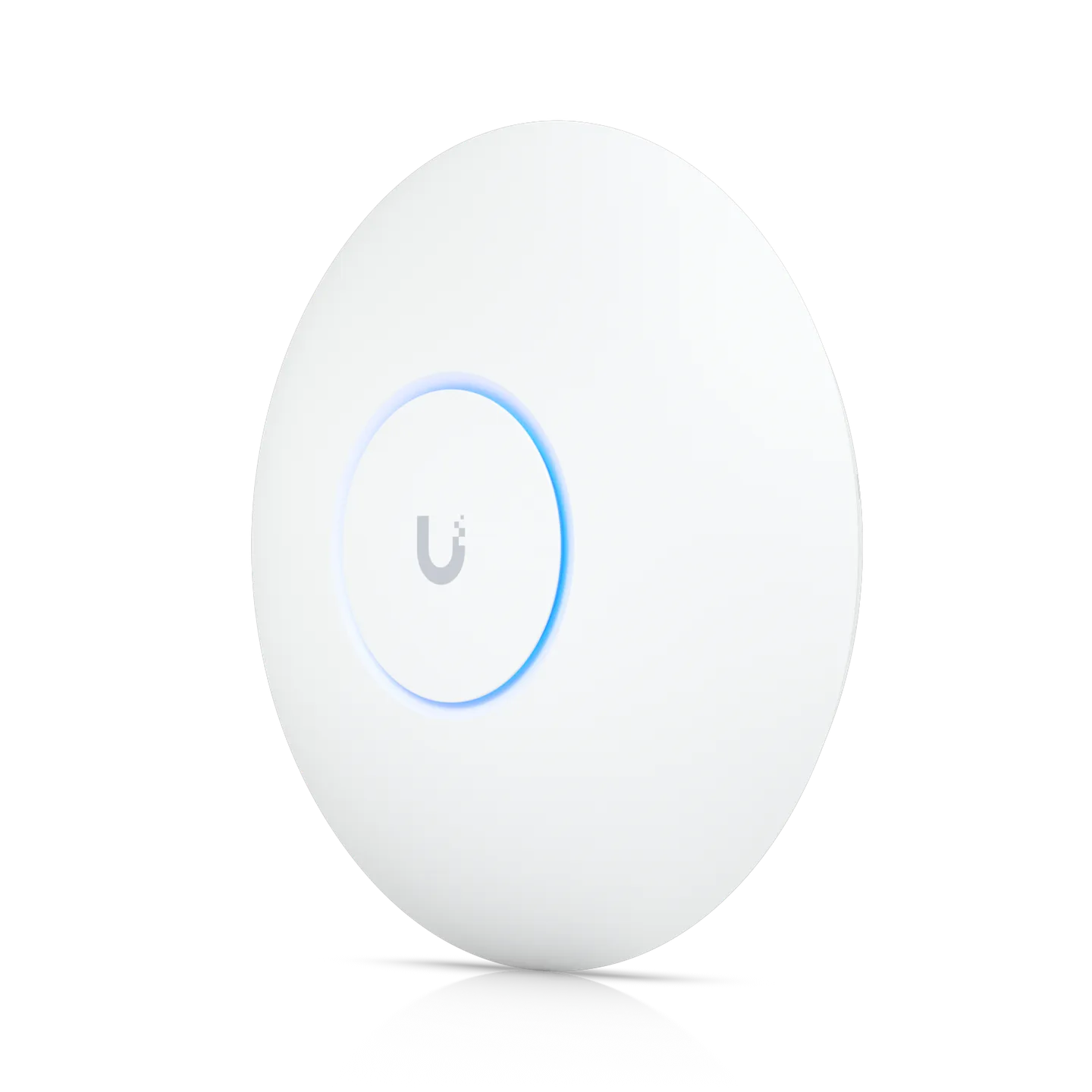

The Ubiquiti UniFi U7‑Pro Max is a premium Wi‑Fi 7 access point designed for high‑density enterprise environments. With 8 spatial streams, coverage up to 160 m² (1,750 ft²), and support for 500+ clients, it delivers exceptional performance for offices, campuses, and large venues.
Powered by a 2.5 GbE uplink and advanced MU‑MIMO across all bands (2×2 on 6 GHz, 4×4 on 5 GHz, and 2×2 on 2.4 GHz), the U7‑Pro Max achieves maximum data rates of 5.8 Gbps (6 GHz), 8.6 Gbps (5 GHz), and 688 Mbps (2.4 GHz). Its Beamforming antennas (6 dBi on 5 GHz, 5.9 dBi on 6 GHz, 4 dBi on 2.4 GHz) ensure strong, directed signals for optimal coverage and reliability.
Enterprise‑grade features include wireless meshing, band steering, fast roaming (802.11r), zero‑wait DFS, and real‑time spectral analysis. For guest and enterprise networks, it supports Hotspot 2.0 (Passpoint), captive portal with custom branding, voucher/payment authentication, PPSK, and dynamic VLAN assignment via RADIUS.
Built with a polycarbonate and aluminum enclosure, the U7‑Pro Max is NDAA compliant and certified for global use. It is managed via UniFi Network software (v8.2.93 and later), providing centralized monitoring, configuration, and optimization.
Key Features
Wi‑Fi 7 Standard: 8 spatial streams with ultra‑fast multi‑band performance.
High Capacity: Supports 500+ clients with coverage up to 160 m².
2.5 GbE Uplink: Ensures high throughput for enterprise networks.
Advanced MU‑MIMO: 2×2 (6 GHz, 2.4 GHz), 4×4 (5 GHz).
Seamless Roaming: 802.11r/k/v support with band steering.
Guest & Enterprise Features: Captive portal, PPSK, voucher/payment authentication.
Security: WPA3, RADIUS over TLS, client isolation, VLAN tagging.
Management: UniFi Network application with advanced radio resource management.
Durable Build: Polycarbonate/aluminum enclosure, stainless steel mounting, NDAA compliant.
Specifications
Dimensions: ⌀206 × 46 mm (⌀8.1 × 1.8")
Weight: 680 g (1.5 lb)
Ports: 1× 1/2.5 GbE RJ45
Power: PoE+ (44–57V DC), Max consumption 25W
Operating Temp: –30 to 50 °C
Operating Humidity: 5–95% non‑condensing
Certifications: CE, FCC, IC, Anatel
Package Contents
